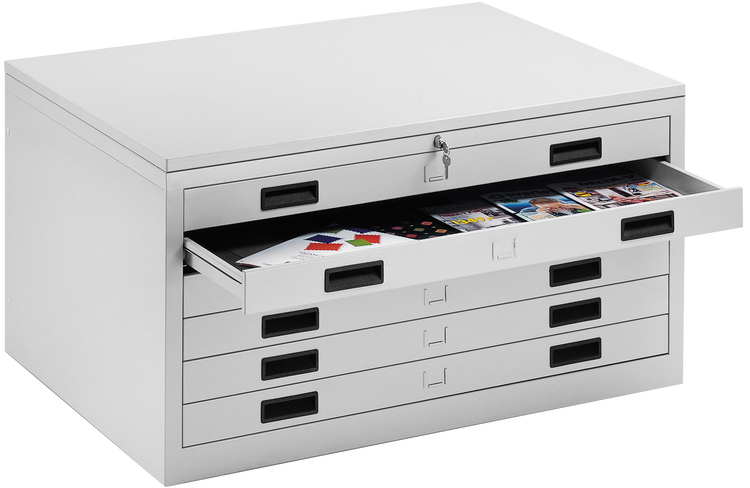

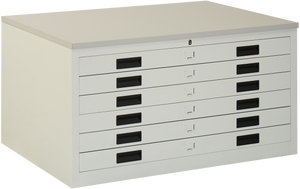

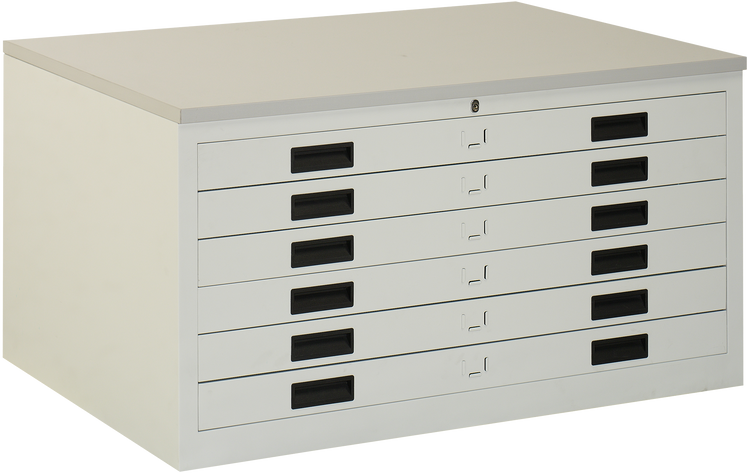

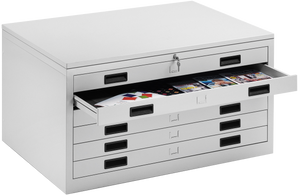

Blueprint / Flat-File Storage Cabinet, Lockable, CH Series

SKU: SKU #  51113

The Blueprint / Flat-File Storage Cabinet is a practical and secure solution for archiving and organizing large-format documents such as blueprints, technical drawings, and maps. Built with robust welded steel construction and a high-quality powder-coated finish, it ensures durability and long-lasting performance. Thoughtfully designed with label holders and integrated plastic handles for easy identification and use, this cabinet is perfect for architects, engineers, construction professionals, and design studios.

Key Features

• Practical storage solution for large-format documents and blueprints

• Robust, fully welded steel construction for long-lasting durability

• 200 °C baked epoxy-polyester powder-coated finish for enhanced protection

• 18 mm chipboard top, E1-grade and free of carcinogenic substances

• Suitable for A0 and A1 paper sizes (custom sizes available upon request)

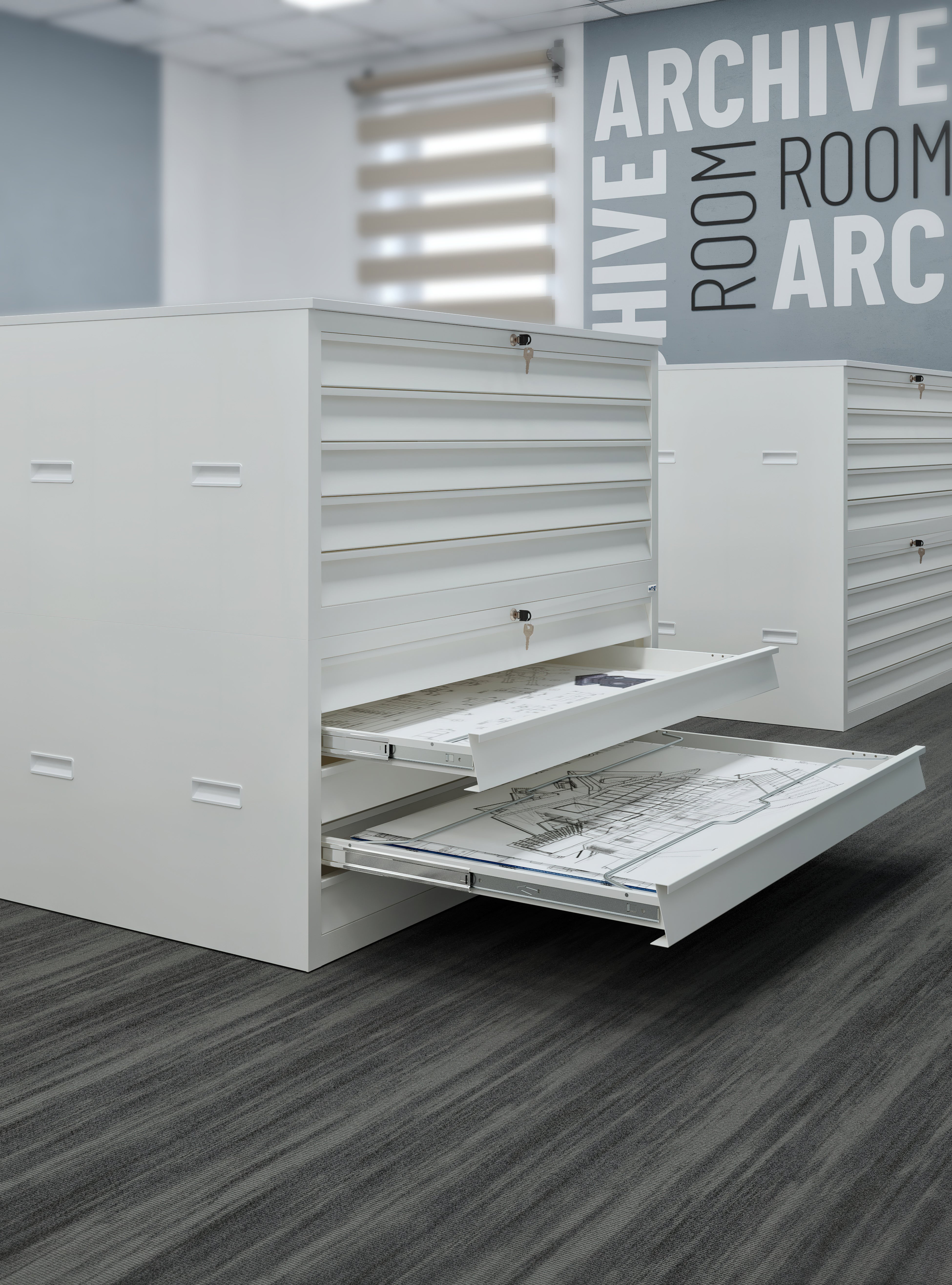

• Smooth-operating drawers with bearing rail system, allowing 80% extension for easy access

• Central locking mechanism with secure cylinder lock

• Label holders on each drawer for organized archiving

• Integrated plastic handles for ease of use and a clean look

• Load capacity of each drawer: 60 kg (132 lbs), ideal for heavy drawing sets

• Designed for professional environments such as offices, studios, and archives

Specifications

• Material: Fully welded steel body with 18 mm E1-grade chipboard top

• Finish: 200 °C baked epoxy-polyester powder coating for durability and rust resistance

• Drawer System: Bearing rail system with 80% opening

• Locking: Central locking mechanism with secure cylinder lock

• Load Capacity: Each drawer supports up to 60 kg (132 lbs)

• Paper Size Compatibility: Suitable for A0 and A1 paper sizes (custom sizes available upon request)

• Additional Features: Label holders on each drawer and integrated plastic handles

• Color Options: Available in standard colors; custom colors available upon request

Why You Should Choose This Product

The Blueprint / Flat-File Storage Cabinet combines durability, practicality, and professional design to deliver optimal storage for your valuable documents. Its heavy-duty drawers, user-friendly label holders, and integrated handles ensure organized, efficient access, while the robust construction and high-quality finish guarantee years of reliable use. Tailored for workspaces where precision and document protection matter, it’s the ideal choice for architects, engineers, and creative professionals.
